Pipe puncher
Different execution of punches for work in gaseous environments, under conditions of high pressures
Punching of holes with a diameter of 8 to 25 mm in tubing walls, from 60 to 168 mm in casings
Preview
Designs of all punchers are protected by Russian Federation patents.

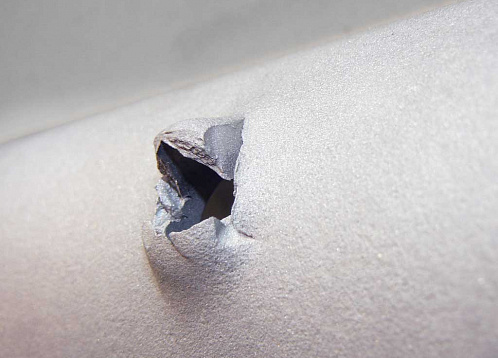

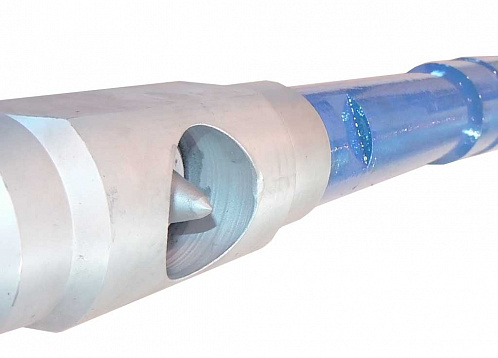

Advanced pipe punches PTM are designed for punching holes with a diameter of 8…25 mm in the tubing walls and casings 60…168 mm of domestic and foreign production, located in the well, in order to communicate their cavity with the annulus. The resulting hole allows restoring circulation in the practice of workover and well development, prevent lifting of pipes with fluid, fill up top cement behind casing, increase productivity, industrial standards, and labor safety during well workover, and reduce environmental pollution.
Application – Well workover operations.
Punchers can be produced in several designs:
- K – wire type
- KC - wire-drop type
- Y – universal allowing punching pipes of several sizes
- G – for operations in gaseous medium
- VD – for operations at depths 3000-6000m
Puncher running is carried out on a wire, a cable, coiled tubing, by free dropping.
As a source of energy for punching pipes hydrostatic pressure potential energy in tubing, formation energy or pumping unit pressure is used.
Characteristics
|
Size |
Body diameter, mm |
Hydraulic drive diameter, mm |
Length, mm |
Punched pipe diameter/wall thickness, mm |
Punched hole diameter, mm |
Tool joint , box |
Weight, kg |
|
PTM-60КС |
48 |
45 |
1150 |
60/5,0 |
8…10 |
М33х 1,5 |
10 |
|
PTM-73КС |
58 |
54 |
1180 |
73/5,5 |
10…12 |
М33х 1,5 |
13 |
|
PTM-89КС |
72 |
64 |
1380 |
89/6,5 |
14…16 |
М39х 1,5 |
23 |
|
PTM-102КС |
82 |
64 |
1380 |
102/7,26 |
13…15 |
М39х 1,5 |
24 |
|
PTM-114КС |
94 |
64 |
1380 |
114/7,37 |
13…15 |
М39х 1,5 |
26 |
|
PTM-146 |
116 |
114 |
2142 |
146/10,7 |
20…25 |
М52х5* |
56 |
|
PTM-168 |
136 |
114 |
2142 |
168/12,1 |
20…25 |
М52х5* |
62 |
|
New developments |
|||||||
|
PTM-89/63К |
64 |
63 |
1380 |
89/6,5 |
14…16 |
М39х 1,5 |
23 |
|
PTM-60-73У |
48 и 58 |
45 |
1320 |
60/5,0 и 73/5,5 |
8…10 |
М33х 1,5 |
16 |
|
PTM-89-114У |
72 82 94 |
64 |
1380 |
89/6,5 102/7,26 114/7,37 |
13…16 |
М39х 1,5 |
25 |
* Tool joints can be changed at the request of the customer, if necessary.
* Due to continuous improvement of products, slight differences from the parameters indicated in the table are possible.
